DisplayPort over MPO Fiber Cable – 8K@60Hz, 4K@144Hz | Up to 300m (~1000ft) | DP 1.4 Detachable TX/RX

Made to order, takes 12-18 days to ship

DisplayPort That Actually Reaches Where You Need It

Most DisplayPort cables stop at 10 feet. This system goes up to 300 meters (984 feet) — with zero signal loss, zero compression, and zero interference.

This isn’t just a cable. It’s a professional-grade fiber transmission system designed for installations where distance, reliability, and future flexibility matter.

What This System Includes

1. MPO Fiber Cable

• 7-core fiber optic cable (ultra-slim, lightweight)
• No bulky connectors — ideal for conduit and in-wall runs
• Built for permanent infrastructure installs

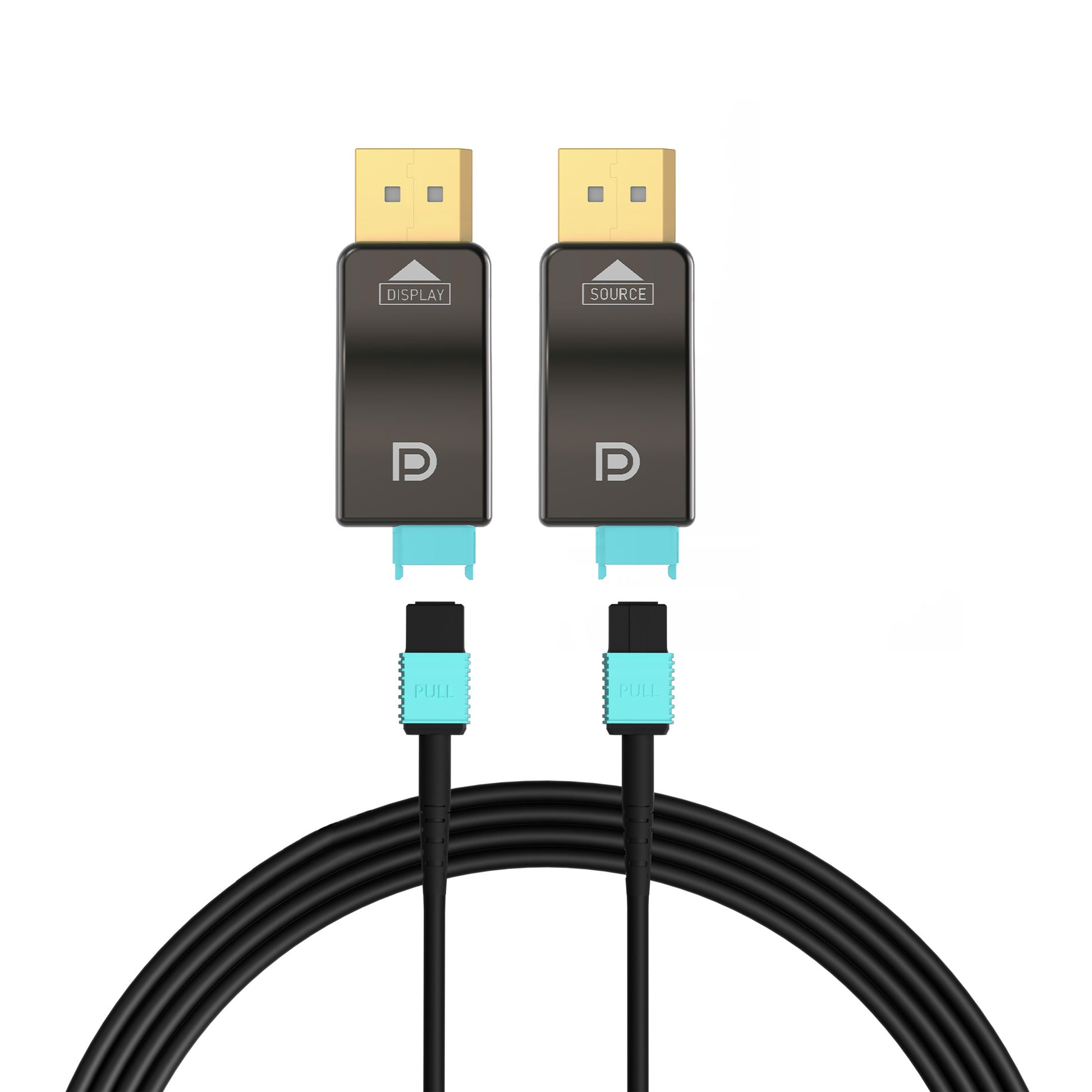

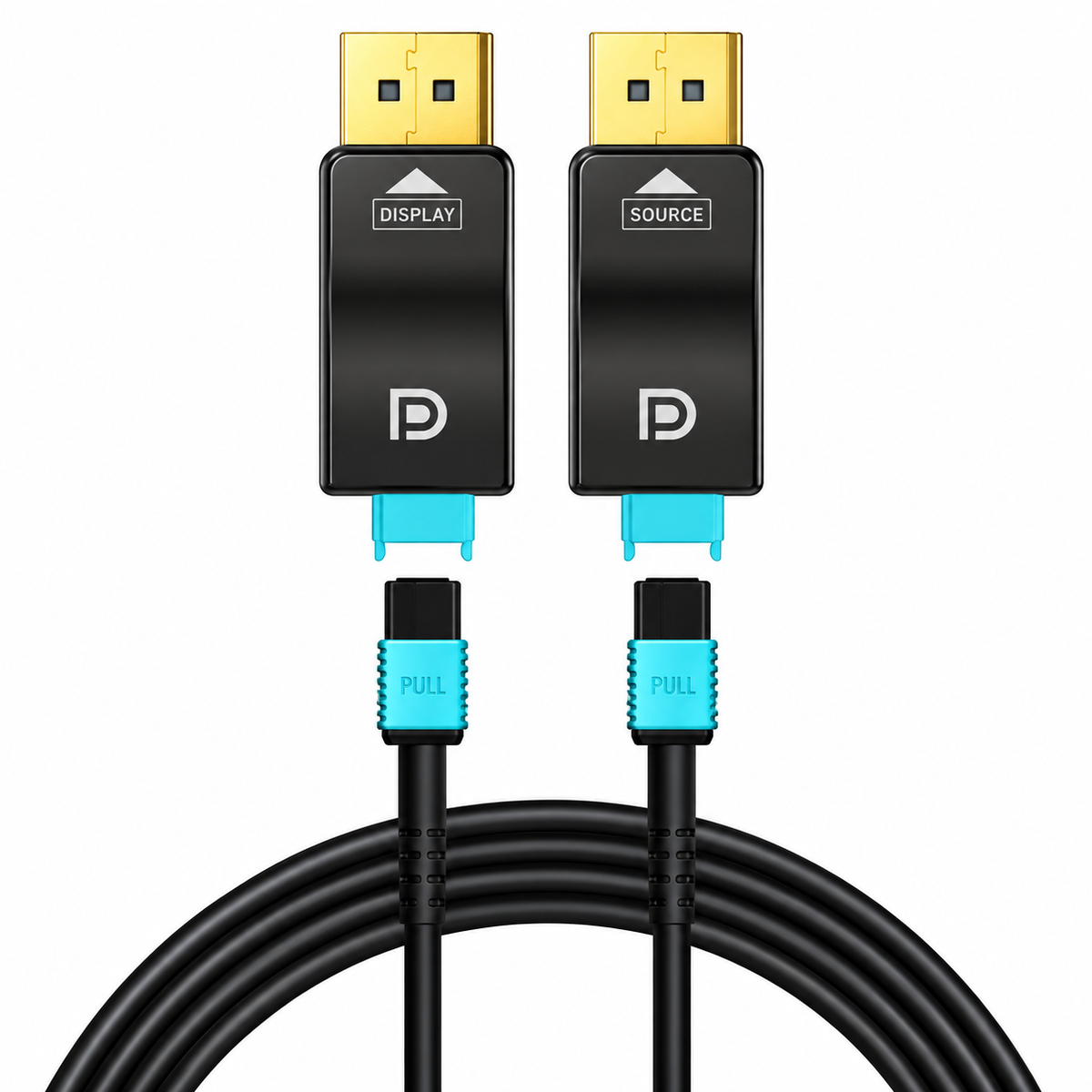

2. Detachable TX + RX Adapters

• TX (Transmitter): connects to your DisplayPort source (GPU, laptop, workstation)
• RX (Receiver): connects to your display (monitor, projector, video wall)
• Adapters attach after cable installation clean and efficient setup

Why This Is Better Than Standard Fiber DP Cables

• No bulky connectors during installation | easier conduit routing
• Replace adapters, not the entire cable | lower long-term cost
• Future-proof system | upgrade endpoints without rewiring

Traditional active optical cables lock you into a fixed system. This MPO solution gives you flexibility + serviceability — critical for professional environments.

Performance Capabilities

• Up to 8K @ 60Hz
• 4K @ 144Hz (high refresh)
• Uncompressed signal transmission
• Bandwidth up to 32.4 Gbps
• HDR + full 4:4:4 color support

• This system supports both Windows display modes:

  • Duplicate / Mirror: Shows the same content on the local and remote displays.
  • Extend: Uses the remote display as additional desktop space.

Built for Real Installations

• Immune to EMI (fiber = no electrical interference)
• 3.0mm slim armored cable | fits tight conduits
• LSZH jacket | safer for commercial environments
• Reliable over long distances (up to 300m)

Use Cases

• Server room to office display setups
• Broadcast and live production environments
• Stadiums, auditoriums, and large venues
• Video wall and multi-display systems
• High-performance gaming across rooms

Technical Specifications

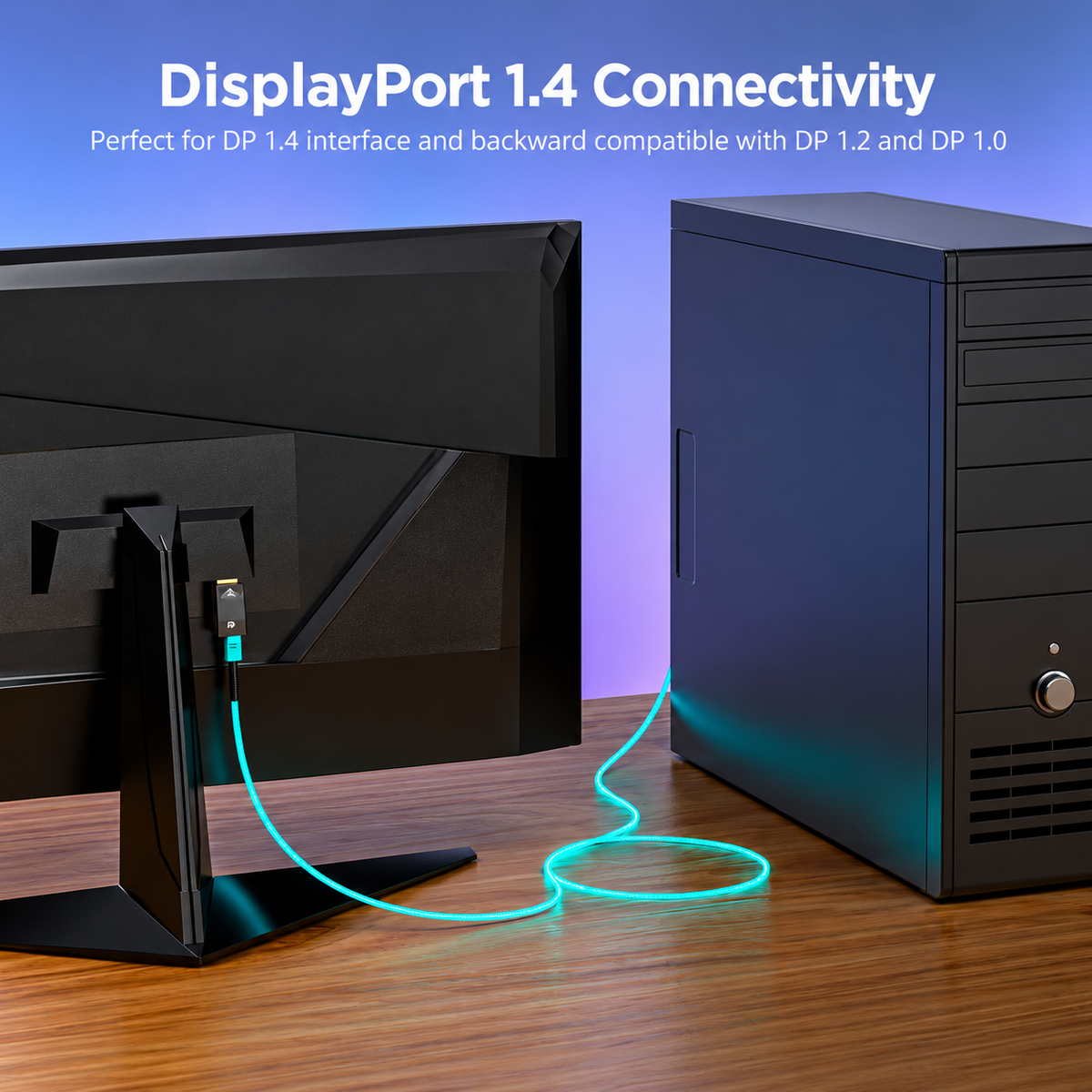

• Standard: DisplayPort 1.4 (backward compatible with DP 1.2)
• Max Resolution: 8K @ 60Hz
• High Refresh: 4K @ 144Hz
• Color: 4:4:4, 10-bit
• HDR Support: Yes (HDR + SDR)
• HDCP: 1.4 / 2.2 / 2.3
• Bandwidth: Up to 32.4 Gbps
• Fiber Type: MPO 7-core, A polarity, PC end face
• Cable Diameter: 3.0mm
• Jacket: LSZH armored
• Max Distance: 300m / 984 ft

Key Advantage

Install once. Upgrade anytime.

This is not just a cable  it’s a long-term AV infrastructure solution built for professionals.
